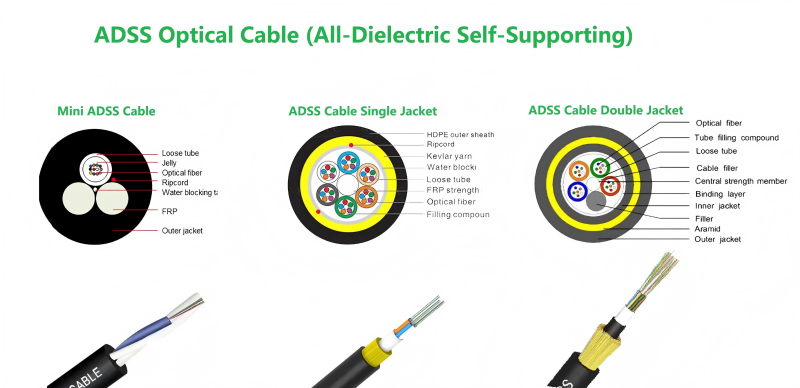

Outdoor Aerial Optic Cable ADSS

Fiber cores

2F～144F, max 288F

Fiber type

G.652, G.655, G.657

Span length

100m~1.5km

Cable outer diameter

10~19 mm

Central strength member

FRP

Aramid yarn quality

International A level

Jacket No

Single jacket or double jacket

Jacket material

PE @  10kV / 35kV power line

AT @ ≥110kV power line

Jacket thickness

1.8 mm

Cable RTS

11~95 kN

Cable UOS

≥60% RTS

Cable MAT

≥40% RTS

Cable EDS

≥25% RTS

Bending Radius

Dynamic ≥20D; Static ≥10D

Crush Resistance Strength

Short term 1000N, long term 300N @ single jacket

Short term 3000N, long term 1000N @ double jacket

Temperature range

Working temp: -40℃ ~ +70℃

Storage temp: -50℃ ~ +70℃
