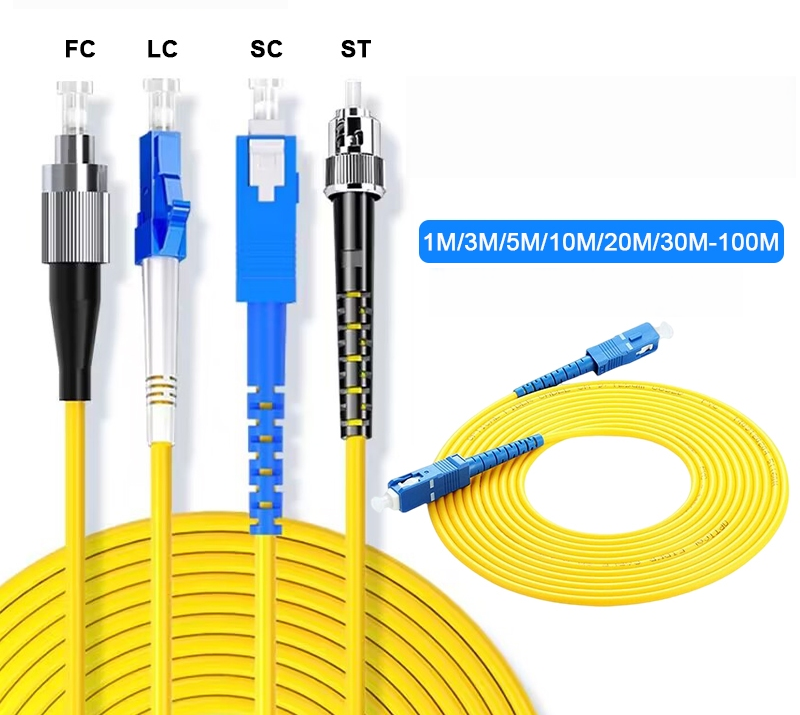

Fiber Optic Patch Cord
Product Overview
Ceramic ferrule, high return loss, low insertion loss.
Product Information
Product Details
Specification
Fiber Mode | Single mode (SM): 9/125um Multi mode (MM): 62.5/125um, 50/125um |
Fiber Type | Simplex, Duplex (option) |
Fiber Standard | SM：G652D、G657A1、G657A2 (option) MM：OM1、OM2、OM3、OM4、OM5 (option) |
Connector | SC, FC, ST, LC, MTRJ, E2000, MU, SMA , FDDI, MPO /MTP etc (option) |
Polish Type | PC, UPC, APC (option) |
Fiber Diameter | 0.9mm, 2.0mm, 3.0mm etc (option) |
Fiber length | 1M, 3M, 5M,10M, 20M etc (option) |
Material | PVC, LSZH, OFNR, Plenum (option) |
Technical Data
Mode | SM | MM | |||
Fiber Cable Type | G652D/G655/G657A1/G657A2 9/125um | OM1 62.5/125um | OM2/OM3/OM4 50/125um | ||
Polishing | PC | UPC | APC | UPC | UPC |
Insertion Loss | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
Return Loss | >45 | >50 | >60 | / | / |
Interchangeability | ≤0.2dB | ||||
Salt Spray | ≤0.2dB | ||||
Repeatability | ≤0.1dB (1,000 times) | ||||
Temperature | High Temperature: ≤0.2dB (+85°C 168 hours) Low Temperature: ≤0.2dB (-40°C 168 hours) Temperature Cycle: ≤0.2dB (-40°C~85 °C 21 cycles 168 hours) Humidity: ≤0.2dB (95% 75°C 168 hours) | ||||
Apex Offset | 0~50um | ||||
Radius of Curvature | 7~25mm | ||||
Undercut | -50~50mm | ||||
Durability | ≥1,000 matings | ||||
Tensile Strength | ≥90N (3.0mm), ≥70N (2.0mm) | ||||
Vibration | ≤0.1dB (10-55Hz 1.5mm) | ||||
Falling | ≤0.2dB (1.5m high, 8 times) | ||||
Operating Temp. | -40°C~+80°C | ||||
Note: Insertion loss 0.2dB and 0.1dB (master cord/reference cable) is also available.
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| Fiber Optic Patch Cord | In Stock |
