Micro duct Cable GCYFTY
LG-GCYFTY
Product Overview

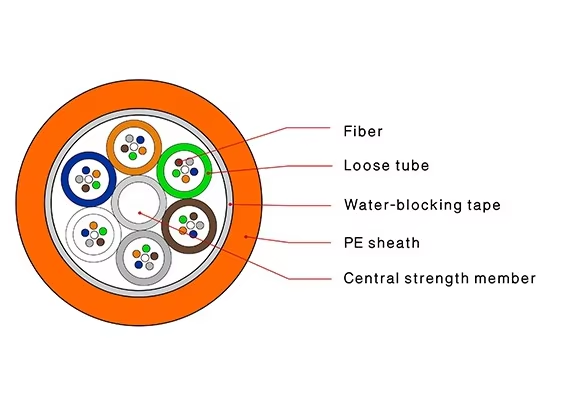

Air blown fiber optic cable for micro duct installation
Product Information
Product Details
Items | Specifications | |
Fiber Count | 4, 8, 12, 24, 48, 72, 96, 144 | |
Cable Diameter Approx | 9~16 mm | |
Fiber Type | Single mode: G.652D, G.657A1, G.657A2 | |
Coating Fiber | Dimension Color | 250µm±15µm Blue、Orange、Green、Brown、Gray、White 、 Red、Black、Yellow、Purple、Pink、Aqua |
Loose Tube | Dimension Material Color | 1.7±0.1mm PBT Blue、Orange、Green、Brown、Gray、White 、 Red、Black、Yellow、Purple、Pink、Aqua |
Filler | Dimension Material Color | 1.7±0.1mm PP Natural |
Central Strength Member | Material | FRP |
Outer Sheath | Dimension Material Color | 6.3±0.3mm（4F-72F); 7.4±0.3mm（96F); 9.6±0.5mm (144F PVC, LSZH, PE Black or other color |
Fiber Attenuation coefficient in Cable | dB/km(1310nm) dB/km(1550nm) | ≤0.35dB/km ≤0.22dB/km |
Tensile Strength | Short Term Long Term | 0.5G 0.15G |
Crush Resistance Strength (N/100mm) | Short Term Long Term | 1000N 300N |
Min. Bending Radius (mm) | Dynamic Static | 20D 10D |
Temperature range | -20～＋70℃ | |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-GCYFTY | Micro duct Cable GCYFTY | In Stock |
