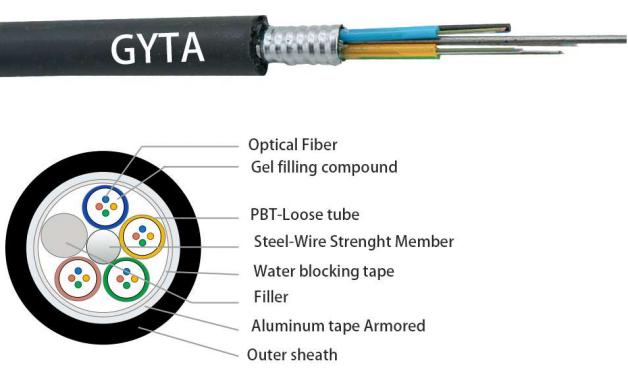

Outdoor Fiber Optic Cable GYTA

Model

Item Description

LG-GYTA-12-D

Armored optic cable GYTA, 12 fiber cores, single mode G.652D

LG-GYTA-12-A1

Armored optic cable GYTA, 12 fiber cores, single mode G.657A1

LG-GYTA-12-A2

Armored optic cable GYTA, 12 fiber cores, single mode G.657A2

LG-GYTA-24-D

Armored optic cable GYTA, 24 fiber cores, single mode G.652D

LG-GYTA-24-A1

Armored optic cable GYTA, 24 fiber cores, single mode G.657A1

LG-GYTA-24-A2

Armored optic cable GYTA, 24 fiber cores, single mode G.657A2

LG-GYTA-48-D

Armored optic cable GYTA, 48 fiber cores, single mode G.652D

LG-GYTA-48-A1

Armored optic cable GYTA, 48 fiber cores, single mode G.657A1

LG-GYTA-48-A2

Armored optic cable GYTA, 48 fiber cores, single mode G.657A2

LG-GYTA-96-D

Armored optic cable GYTA, 96 fiber cores, single mode G.652D

LG-GYTA-96-A1

Armored optic cable GYTA, 96 fiber cores, single mode G.657A1

LG-GYTA-96-A2

Armored optic cable GYTA, 96 fiber cores, single mode G.657A2

Items

Specifications

Fiber Count

4~144

Cable Diameter Approx

9~16 mm

Fiber Type

 Single mode: G.652D, G.657A1, G.657A2

Coating Fiber

Dimension

250µm±15µm

Color

Blue、Orange、Green、Brown、Gray、White  、 Red、Black、Yellow、Purple、Pink、Aqua

Loose Tube

Dimension

2.0±0. 1mm

Material

PBT

Color

Blue、Orange、Green、Brown、Gray、White  、 Red、Black、Yellow、Purple、Pink、Aqua

Filler

Dimension

2.3±0. 1mm

Material

PP

Color

Natural

Central Strength Member

Material

FRP

Outer Sheath

Dimension

Vary from 7~16mm

Material

PE

Color

Black

Fiber Attenuation coefficient in Cable

dB/km(1310nm)

≤0.36dB/km

dB/km(1550nm)

≤0.22dB/km
